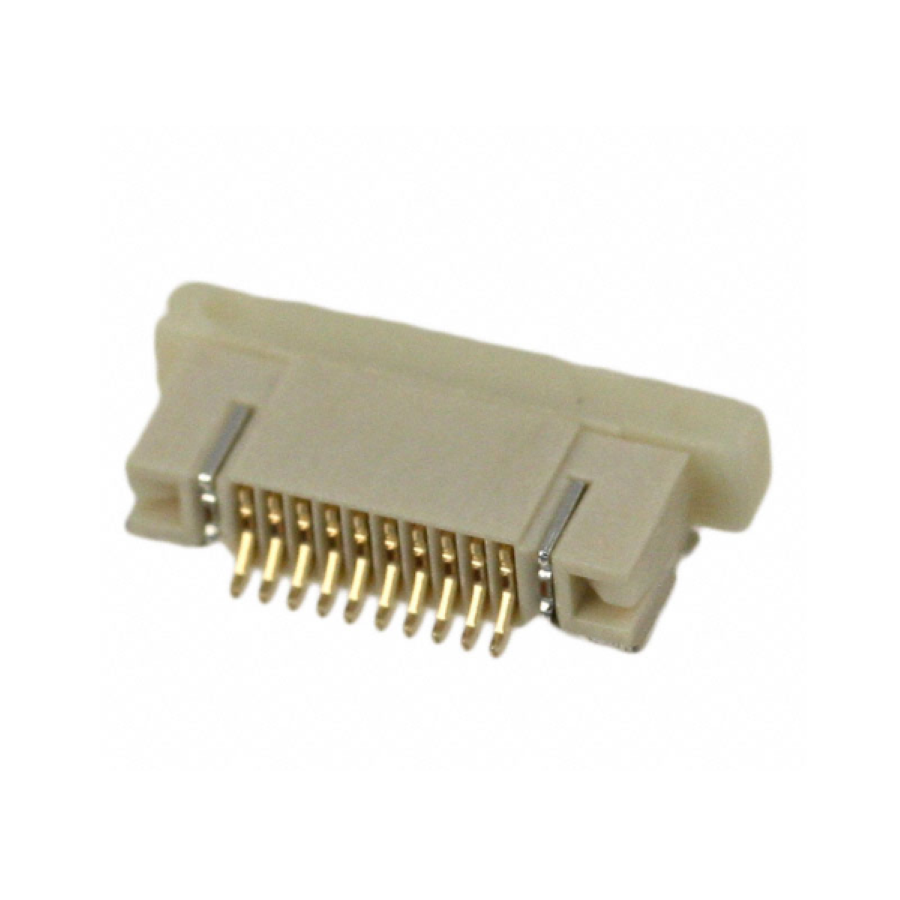

1-1734592-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1734592-0
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:10 500 mA 250 V
| Parameter | Value |
|---|---|
| Length | 10.43 mm |
| Width | 5.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.05 mm |
| Material | Thermoplastic |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 5.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94V-0 |
| Orientation | Right Angle |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Beige |
| Gender | Receptacle |
| Shielding | Unshielded |
| Number of Contacts | 10 |
| ELV | Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Bottom |
| Contact Resistance | 35 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 500 mA |
| Housing Color | Natural |
| Plating | Gold |
| Body Plating | Gold |
| PCB Mounting Orientation | Right Angle |
| Plating Thickness | 25 nm |
| Sealable | No |
| PCB Mount Retention | With |
| PCB Mount Alignment | Without |
Stock: 13215
Distributors
pcbx
pcbxUnit Price$0.42576
Ext.Price$0.42576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42576 | $0.42576 |
| 10 | $0.34454 | $3.44540 |
| 25 | $0.29923 | $7.48075 |
| 50 | $0.29011 | $14.50550 |
| 100 | $0.28127 | $28.12700 |
| 300 | $0.25495 | $76.48500 |
| 500 | $0.23109 | $115.54500 |
| 1000 | $0.20946 | $209.46000 |
| 3000 | $0.20628 | $618.84000 |
| 5000 | $0.20315 | $1015.75000 |
| 10000 | $0.20006 | $2000.60000 |
